Name: Xm/3X.500.2x500.2x22 (EOL)
Brand: InfiLINK XG
Availability: InStock

Description

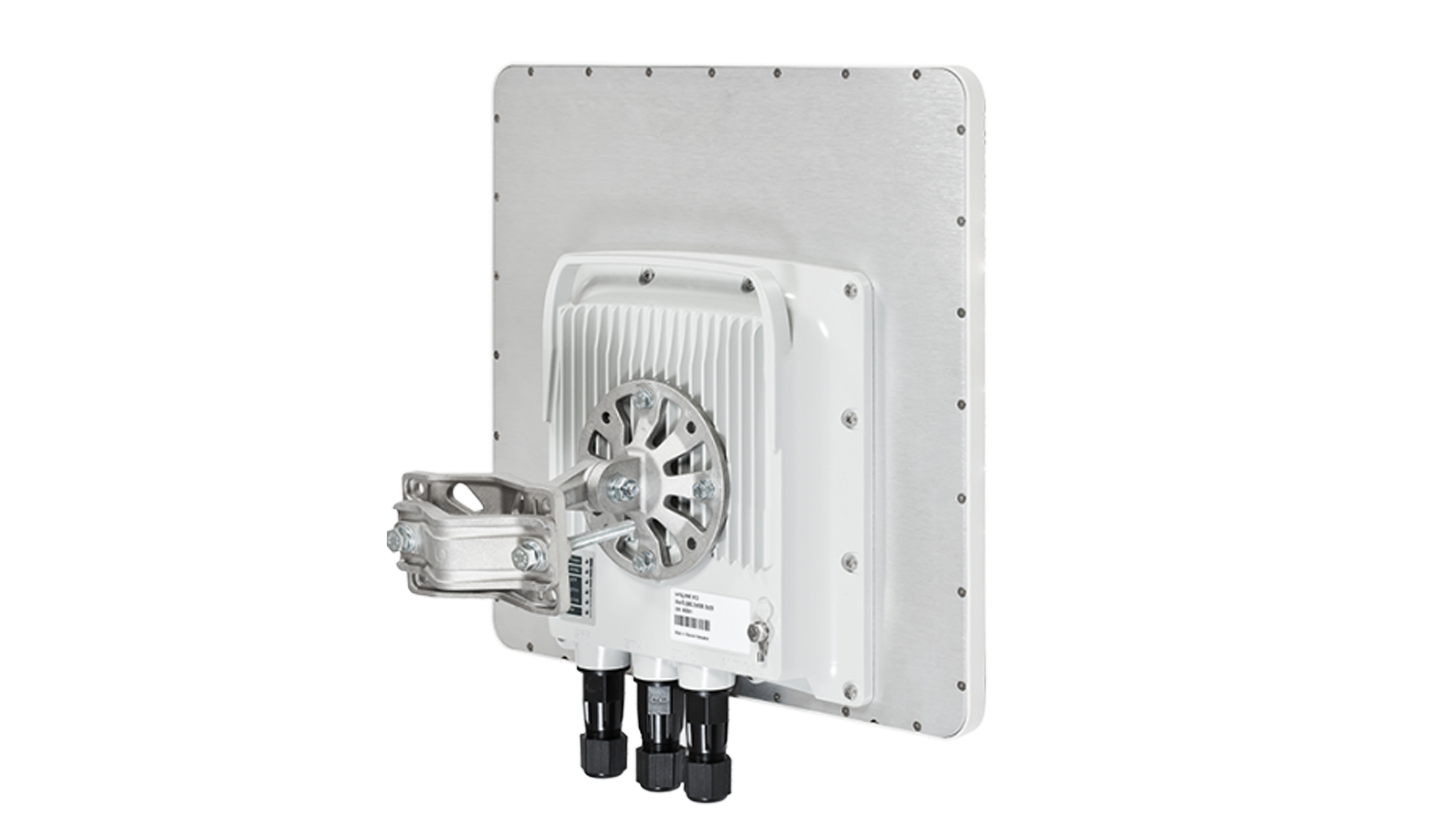

InfiLINK XG Xm/3X.500.2x500.2x22, 3 GHz point-to-point unit, net throughput up to 500 Mbps, integrated dual-pol antenna, 22 dBi, 12x12 deg

Net throughput

up to 500 Mbps

Recommended distances

up to 30 km

Radio technology

MIMO 2x2, Cyclic single carrier

Modulation coding schemes

from QPSK 1/4 to QAM1024 8/10

Transmit power

up to 27 dBm

Frequency range

3100-4010 MHz

Channel width

10, 20, 40 MHz

Antenna

22 dBi

Wired Interfaces

2x GigabitEthernet, SFP

Outdoor Unit (ODU)

371 x 371 x 89 mm, 3.3 kg

Description	Part Number	Quantity
Outdoor Unit	Xm/3X.500.2x500.2x22	1 pcs.
Power Supply	IDU-CPE-G(56W)	1 pcs.
Power Cord	IEC C13	1 pcs.
Cable Gland for RJ-45	INFINET-GLAND-V1	2 pcs.
Cable Gland for optical cable	INFINET-GLAND-V2	1 pcs.
Standard RJ-45 connector	TPR-8P8C	2 pcs.
Shielded RJ-45 connector	8P8C-U-C5-SH	1 pcs.
RJ-45 Plug Cap	TPC-1G	1 pcs.
Mounting kit	MONT-KIT-85	1 pcs.
Quick Start Guide	-	1 pcs.

Xm/3X.500.2x500.2x22 (EOL)
